Unit Substation

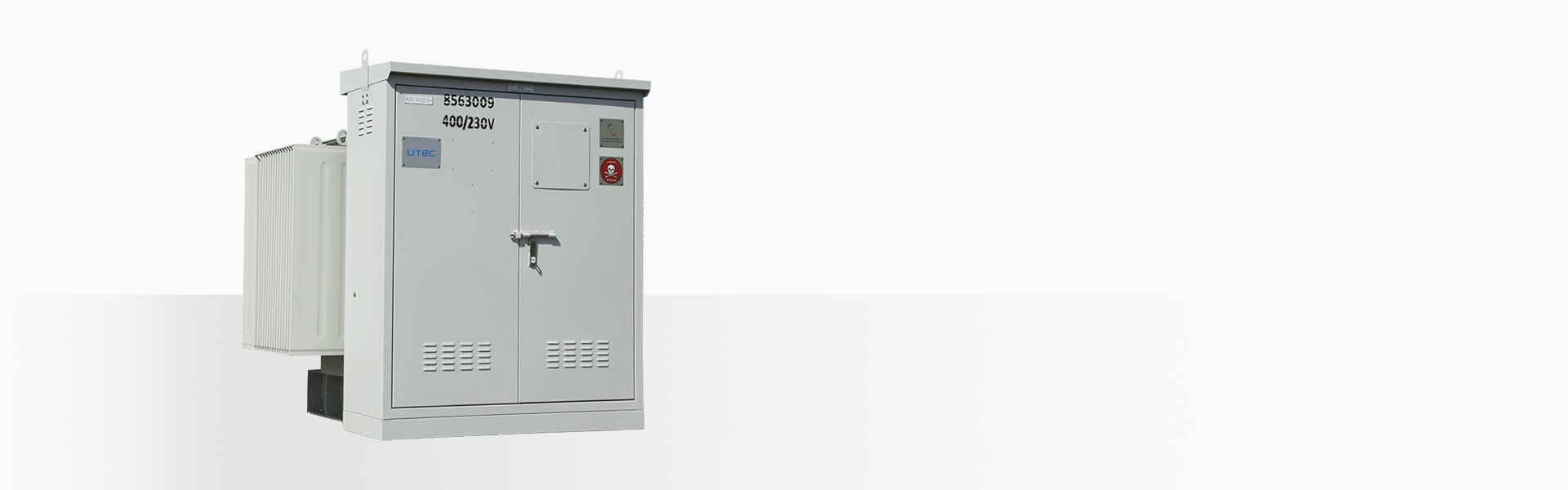

Unit Secondary Substation Elevates Power Distribution Efficiency Experience the pinnacle of power distribution technology with UTEC’s cutting-edge Unit Secondary Substation (USS). Crafted as a specialized form of our Packaged Substation, the USS effortlessly integrates a distribution transformer, a low voltage (LV) switchboard, essential connections, and accompanying equipment within a compact yet robust unit. Meticulously designed and rigorously type-tested according to IEC 62271-202 standards, the USS is a testament to innovation and reliability.
Key Product Features
Enclosed Configuration
This configuration boasts two separate compartments, one dedicated to the distribution transformer and the other to the LV equipment. The flexible enclosed-type design accommodates single or double roof systems, allowing hassle-free equipment replacement
Exposed Configuration
This configuration is a testament to versatility and efficiency, featuring an exposed transformer paired with an outdoor LV switchboard on a shared skid base. The exposed-type USS configuration uniquely features oil-filled transformers, presented openly w
Proven Performance
Enhanced Safety and Aesthetics
The USS is strategically engineered to uphold stringent personal safety standards, making it a perfect fit for deployment in high-density urban centers. Its sleek design doesn’t compromise on aesthetics, seamlessly blending into its surroundings.
All-Encompassing Enclosure
With an innate focus on safeguarding equipment against environmental hazards and unauthorized access, the USS is encapsulated within a self-supporting enclosure. This protective shield ensures optimal functionality and longevity.
Cooling and Ventilation
Natural ventilation channels enhance the cooling efficiency of the electrical components, promoting optimal performance. For more demanding environments, optional forced ventilation is available.
Intelligent Door Design
Designed with operational ease in mind, the USS doors incorporate a door stopper to maintain an open position during maintenance. Standard 3-point locking is complemented by custom variants, ensuring security without compromise.
Seamlessly Integrated Connectivity
The USS ensures seamless connectivity. The distribution transformer’s MV side connection is established through pre-molded, heat shrink, or cold shrink cable heads. The LV switchboard is connected through a meticulously sized bus bar or insulated cable pr
Unit Secondary Substation Elevates Power Distribution Efficiency
UTEC also offers a range of transformer maintenance, installation and commissioning and spare parts services to our customers. Discover the epitome of modern power distribution. The Unit Secondary Substation awaits, offering unparalleled efficiency, safet
TECHNICAL DATA
