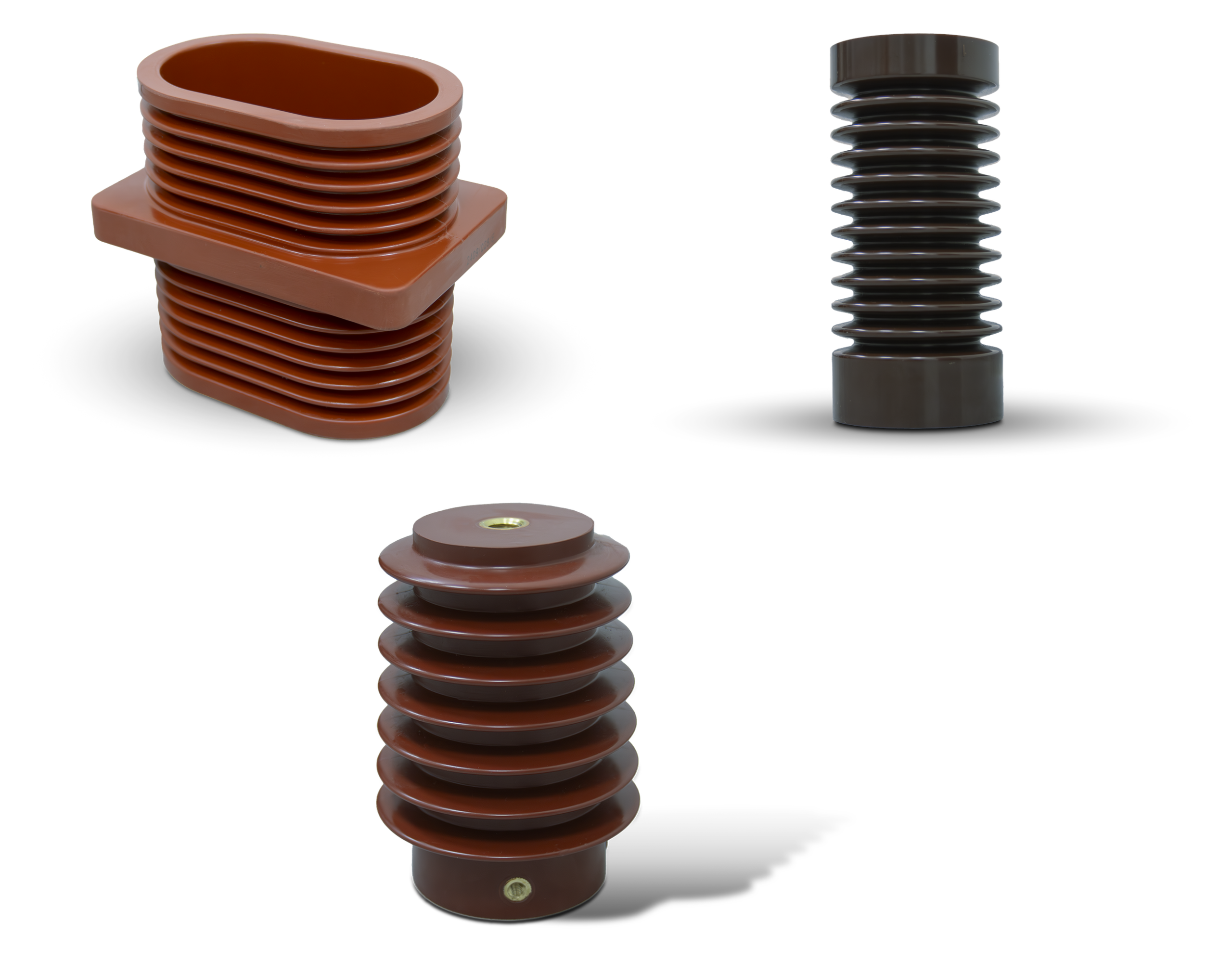

Medium Voltage Epoxy Resin Insulators
Saudi-made insulation performance for reliable medium voltage switchgear. UTEC's Medium Voltage Epoxy Resin Insulators provide dependable electrical insulation and mechanical support for primary and secondary medium-voltage switchgear operating up to 36 kV. Manufactured using Automatic Pressure Gelation technology, the range combines dielectric strength, tracking resistance, arc resistance, mechanical robustness, and dimensional consistency for demanding switchgear and busbar-support applications. The product family includes epoxy cast resin insulators, capacitive insulators, and wall-through bushings.
Key Product Features
Advanced APG Manufacturing Technology
Automatic Pressure Gelation production supports rapid development, repeatable quality, dimensional consistency, and efficient manufacturing of epoxy-molded insulation components.
Medium Voltage Coverage up to 36 kV
The portfolio is designed for primary and secondary medium-voltage switchgear applications operating up to 36 kV.
High Dielectric and Tracking Performance
The epoxy material system offers dielectric strength of 22-28 kV/mm, high tracking resistance, good arc resistance, and glass-transition-temperature withstand capability.
High-Strength Brass Inserts
Insulators use high-torque, mechanically strong brass inserts that can be customized and tapped to customer-specific requirements.
Flexible Material and Color Options
Indoor and outdoor solutions can use salinized, non-salinized, or treated silica fillers, with prefilled or post-filled systems and customer-selected red, grey, brown, or other colors.
Comprehensive Product Portfolio
Available solutions include epoxy cast resin insulators, capacitive post insulators, and epoxy resin wall-through bushings for switchgear and busbar applications.
Locally Manufactured in Saudi Arabia
Saudi manufacturing and testing capability support faster product development, responsive customization, local-content objectives, and Saudi Vision 2030 industrial localization.
Proven Performance
Up to 36 kV
Designed for medium-voltage primary and secondary switchgear applications.
22-28 kV/mm
Excellent dielectric strength for reliable electrical insulation.
IEC 60660 Design Basis
Designed in accordance with IEC 60660 electrical, thermal, and operational parameters.
IEC 62271-200 Application Compatibility
Supports creepage and clearance requirements for medium-voltage switchgear.
Electrical & Mechanical Validation
High-voltage, impulse, partial-discharge, cantilever, bending, and insert-torque tests support product verification.
Material Quality Verification
DSC-Tg measurement and X-ray inspection support insulation-system and casting-quality verification.
Indoor & Outdoor Applications
Material and filler options can be selected according to the application and customer design criteria.
UTEC MV Insulators: Engineered for Reliable Switchgear
For switchgear insulation, busbar support, capacitive indication, and compartment-transition applications, UTEC's Medium Voltage Epoxy Resin Insulators combine advanced APG manufacturing, strong dielectric performance, robust mechanical construction, product customization, and Saudi-made local-content value.
